Wax Injector
KYG0576

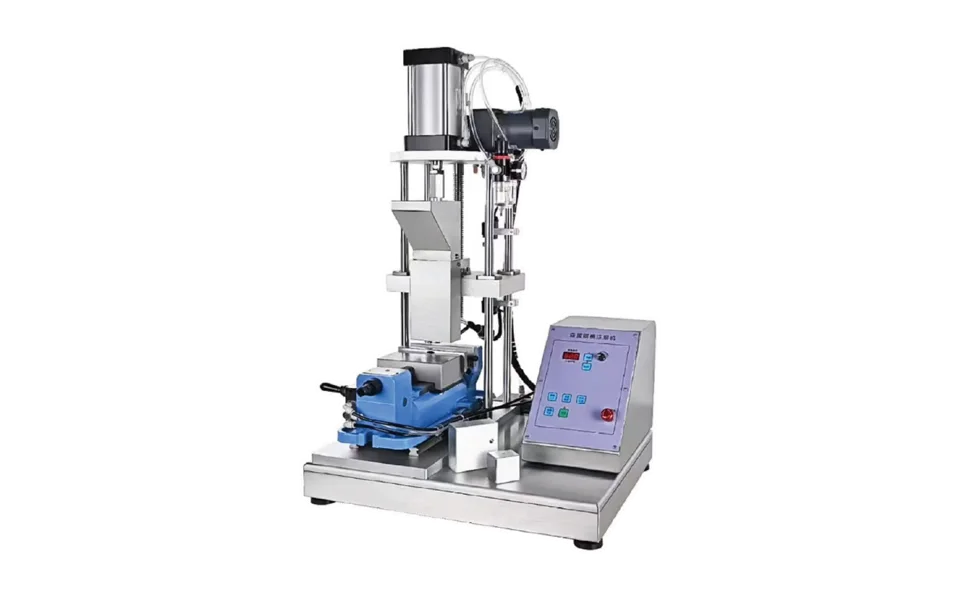

Medium Steel Mold Wax Injector
Automated wax injector for medium steel molds, ideal for jewelry and prototype production.
Waxing & Mould Making
Specifications
| Power Supply | Single phase AC110V/220V +10%, 50/60Hz |
|---|---|
| Rated Power | 500W |
| Temperature Display Range | 40.0–99.9°C (103–212°F) |
| Temperature Setting Range | 40–90.0°C (103–193°F) |
| Temperature Accuracy | ±1°C |
| Injection Time Setting Range | 0–99.9s |
| Time Accuracy | 0.1s |
| Compressed Air Supply | 6–8bar |
| Air Pressure Valve Regulation | 6bar |
| Wax Cylinder Volume | Inner diameter × height: 36×140mm |
| Steel Mold Size | 1180×70×60mm |
| Dimensions | 640×600×922mm |
| Net Weight | 108kg |
Overview
Highlights
- Automated control reduces manual errors and boosts throughput
- Consistent, repeatable results ideal for quality-sensitive production
- Supports extended operation with large wax cylinder and programmable cycles
Applications
- Creating intricate jewelry casting molds
- Prototyping detailed industrial components
- Producing high-quality wax patterns for small batch manufacturing
Overview
The Medium Steel Mold Wax Injector is an automated solution designed for accurate wax injection into steel molds, widely used in jewelry manufacturing and industrial prototyping. It provides consistent results by allowing precise control over temperature and injection timing, outperforming manual or less advanced injectors in both productivity and repeatability. This model is especially useful for operations where detailed wax patterns and efficiency are critical, such as jewelry casting or short-run prototyping.
