Forming & Rolling
Sheet & Wire Rolling Mill
KYG0840

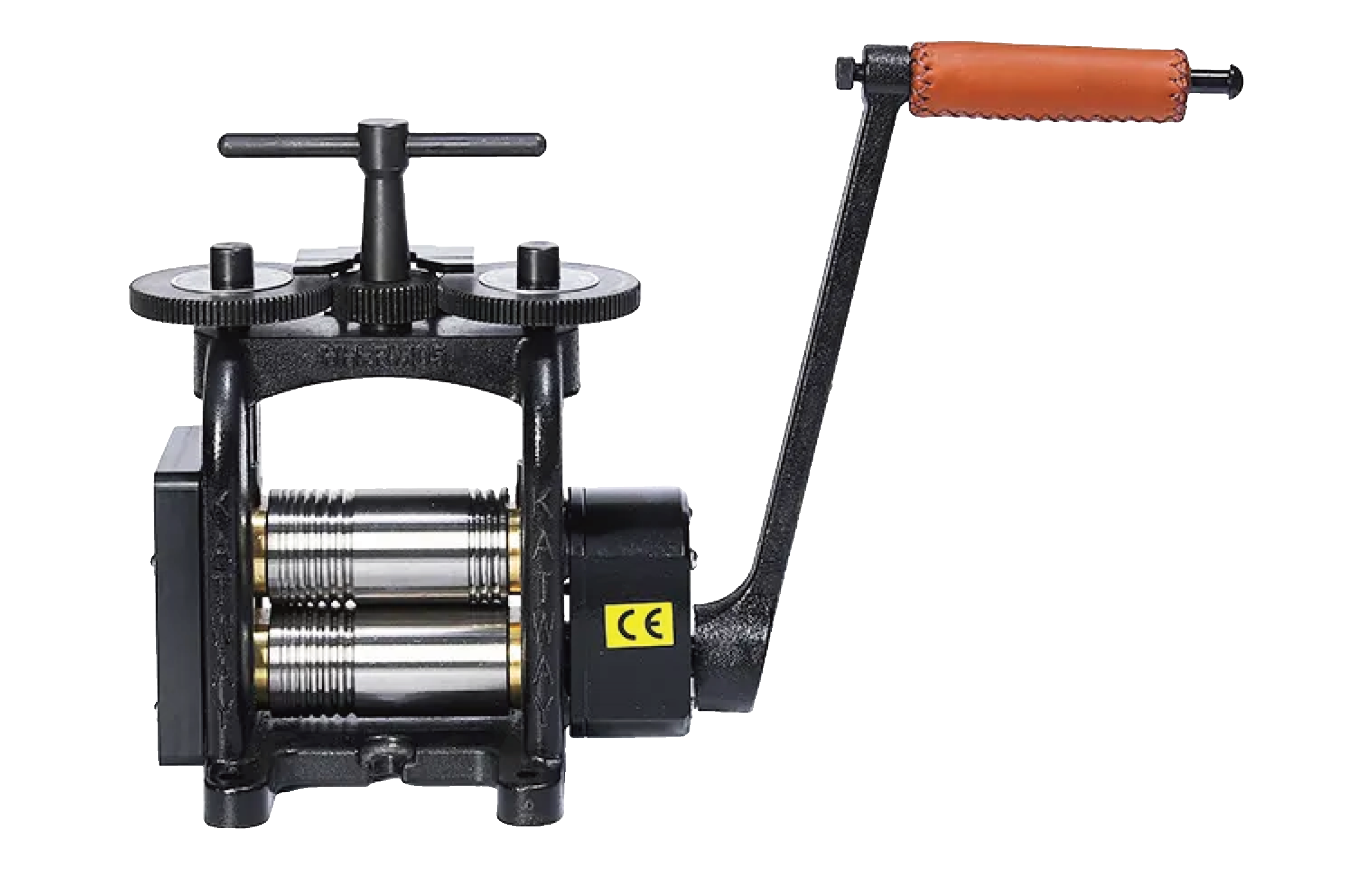

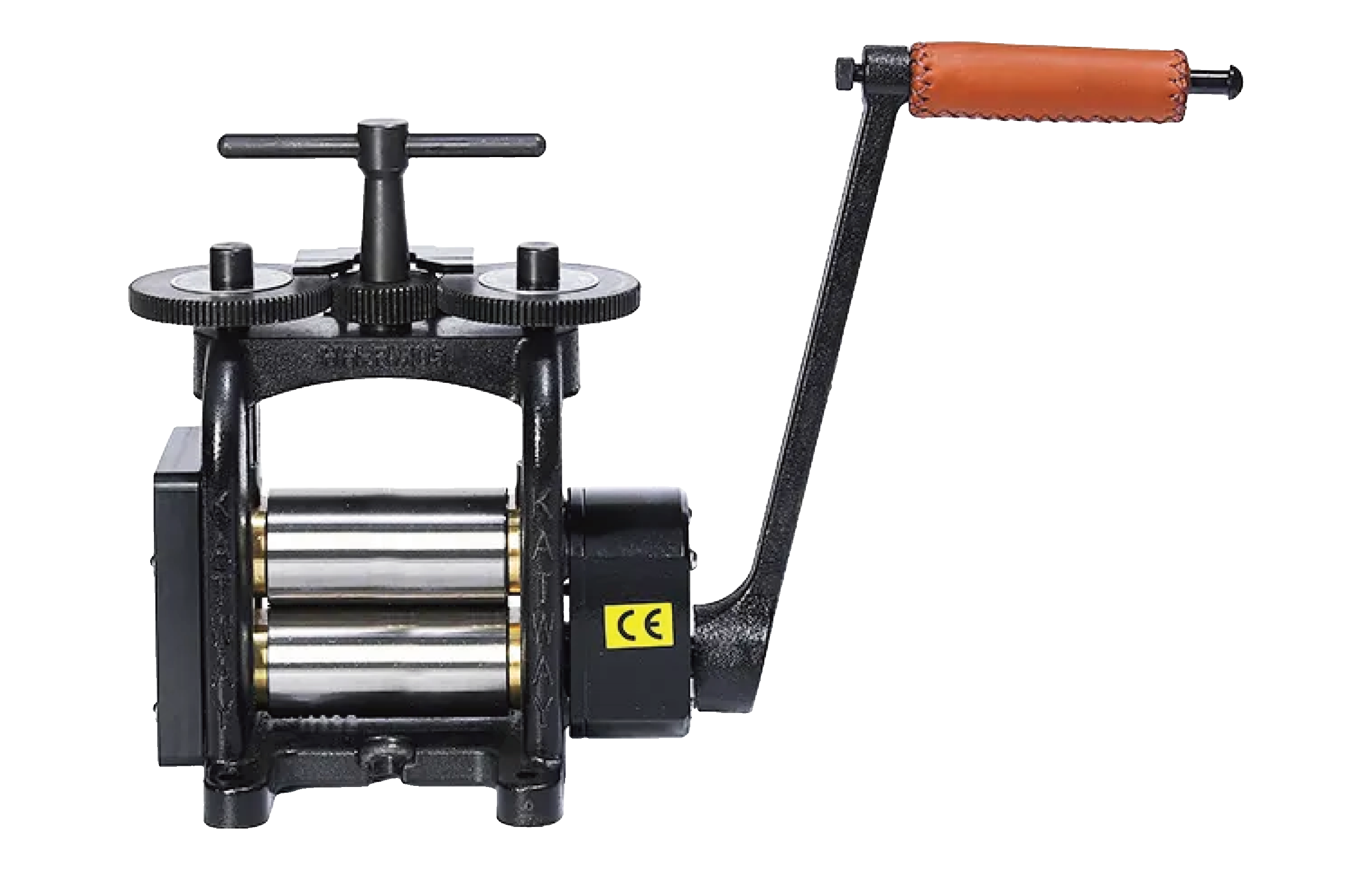

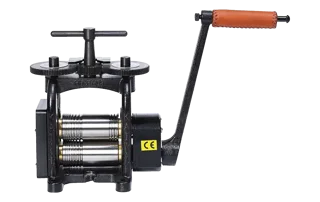

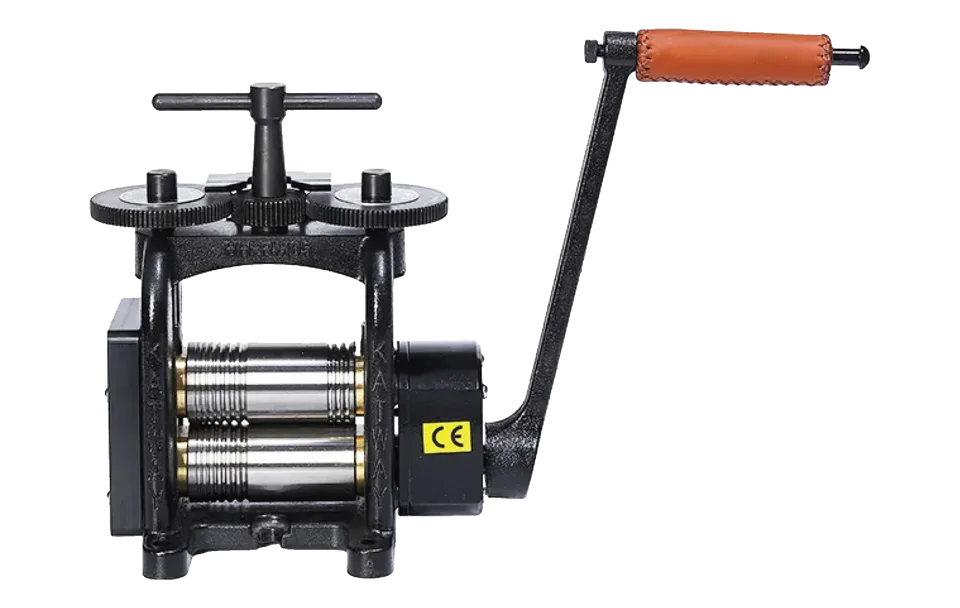

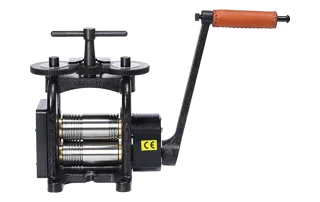

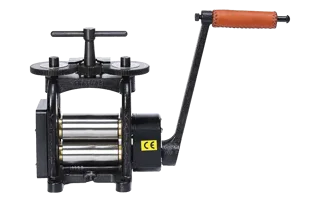

Manual Sheet and Wire Rolling Mill
HH-RM03/HH-RM04/HH-RM05
Versatile, hand-operated rolling mills for sheets and wires in workshops, labs, and jewelry making.
Configure enquiry
Select model
Model: HH-RM05
Parameter comparison
Model parameter comparison
Compare HH-RM05, HH-RM04, and HH-RM03.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
HH-RM05
KYG0840-HH-RM05
| Dimension | 26×19×31mm |
|---|---|
| Roller Diameter | 55mm |
| Roller Width | 110mm |
| Shipping Dimension | 35×33×23mm |
| Shipping Weight | 24.5kg |
| Flat Area | 53mm |
| Square Wire (±/-0.01Mm) | 1.0, 2.0, 2.5, 3.0, 4.0, 4.5, 5.0 |
Selected model
HH-RM04
KYG0840-HH-RM04
| Dimension | 28×20×32.5mm |
|---|---|
| Roller Diameter | 65mm |
| Roller Width | 130mm |
| Shipping Dimension | 37×34×24mm |
| Shipping Weight | 26.2kg |
| Flat Area | 63mm |
| Square Wire (±/-0.01Mm) | 1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5 |
Selected model
HH-RM03
KYG0840-HH-RM03
| Dimension | 28×20×32.5mm |
|---|---|
| Roller Diameter | 65mm |
| Roller Width | 130mm |
| Shipping Dimension | 37×34×24mm |
| Shipping Weight | 26.2kg |
| Flat Area | 130mm |
| Square Wire (±/-0.01Mm) | 1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5 |
Selected variant
HH-RM05
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
HH-RM05
Compare variant
HH-RM04
Roller Diameter
DifferentSelected variant
Compare variant
Roller Width
DifferentSelected variant
Compare variant
Shipping Dimension
DifferentSelected variant
Compare variant
Shipping Weight
DifferentSelected variant
Compare variant
Flat Area
DifferentSelected variant
Compare variant
Square Wire (±/-0.01Mm)
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | |||
|---|---|---|---|
| Dimension | 26×19×31mm | 28×20×32.5mm | 28×20×32.5mm |
| Roller Diameter | 55mm | 65mm | 65mm |
| Roller Width | 110mm | 130mm | 130mm |
| Shipping Dimension | 35×33×23mm | 37×34×24mm | 37×34×24mm |
| Shipping Weight | 24.5kg | 26.2kg | 26.2kg |
| Flat Area | 53mm | 63mm | 130mm |
| Square Wire (±/-0.01Mm) | 1.0, 2.0, 2.5, 3.0, 4.0, 4.5, 5.0 | 1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5 | 1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5 |
Specifications
| Gear Ratio | 4: 1 |
|---|---|
| Maximum Opening | 5 mm |
| Shipping Weight | 24.5 kg (HH-RM05), 26.2 kg (HH-RM04/HH-RM03) |
Overview
Highlights
- Multiple roller sizes adapt to different material widths and types
- Hand-operated design ensures precise, controllable metal forming
- Capable of flat rolling and forming specialty wire shapes
Applications
- Jewelry fabrication and repair
- Small-batch metal part manufacturing
- Manual forming in educational and training settings
Overview
The Manual Sheet and Wire Rolling Mill family (HH-RM05/HH-RM04/HH-RM03) provides sturdy hand-operated metal forming solutions optimized for artisan workshops, educational environments, and jewelry fabrication. Featuring durable construction and ergonomic design, these mills enable efficient shaping of sheet metal and various wire profiles, supporting diverse creative and prototype applications.
Available with multiple roller widths and configurations, these mills deliver reliable flat rolling along with shaping capabilities for square, half-round, and elliptical wire profiles. The simple hand-crank mechanism ensures precise control, making the mills ideal for tasks demanding quality and repeatability.
Typical uses
- Jewelry fabrication and repair
- Small-batch metal part manufacturing
- Manual forming in educational and training settings
