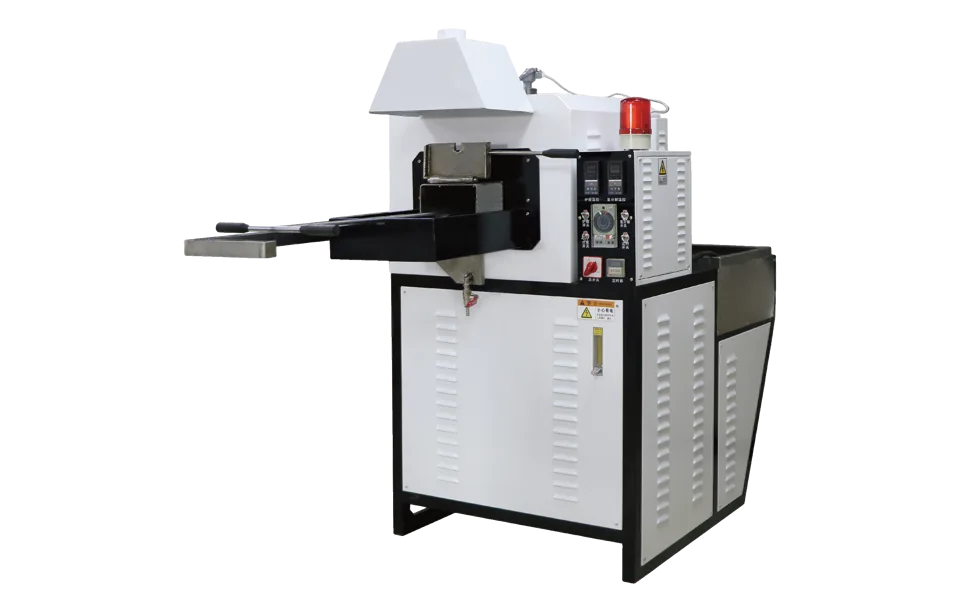

KYG AWF2 Jewelry Annealing Furnace
KYG · AWF2
Industrial annealing furnace for gold, silver, platinum, featuring 1100°C max temp, 9kW power, 380V operation.
Casting Preparation & Burnout
Specifications
| Power Source | 3 phase 380 V, 50/60 Hz |
|---|---|
| Power | 9 kW |
| Ammonia Decomposition Power | 5 kW |
| Heating Time | 40–60 minutes |
| Max. Temperature | 1100 °C |
| Used Gas | Ammonia gas |
| Working Slot Dimensions (W×L×H) | 200 × 100 × 750 mm |
| Overall Dimensions (W×L×H) | 850 × 1400 × 1600 mm |
| Weight | 135 kg |
Overview
Highlights
- Ammonia gas protection prevents oxidation and discoloration for high-quality surface finish.
- Intelligent PID temperature control enables safe, reliable, and continuous operation.
- Spacious chamber and efficient heating cycle support diverse metal materials and batches.
Applications
- Annealing of gold, silver, and platinum jewelry components for improved workability.
- Heat treatment of hardware, alloy stamping parts, and copper-based materials.
- Manufacturing environments requiring controlled, oxidation-free annealing for precision products.
Overview
KYG AWF2 Jewelry Annealing Furnace is designed for precision heat treatment of precious metals such as gold, silver, and platinum in jewelry manufacturing. It operates by heating the metal above the recrystallization temperature and subsequently cooling it to achieve desired mechanical properties. The furnace supports a maximum temperature of 1100°C with a 9kW power rating, enabling efficient annealing cycles within 40–60 minutes.
This system features ammonia gas protection to prevent oxidation and discoloration of the metal surfaces, ensuring high-quality results. It incorporates intelligent PID temperature control for stable, continuous operation, as well as safety features like alarms and ammonia decomposition regulation. The spacious working chamber makes it suitable for a wide range of metal materials and jewelry components.
