KYG0463

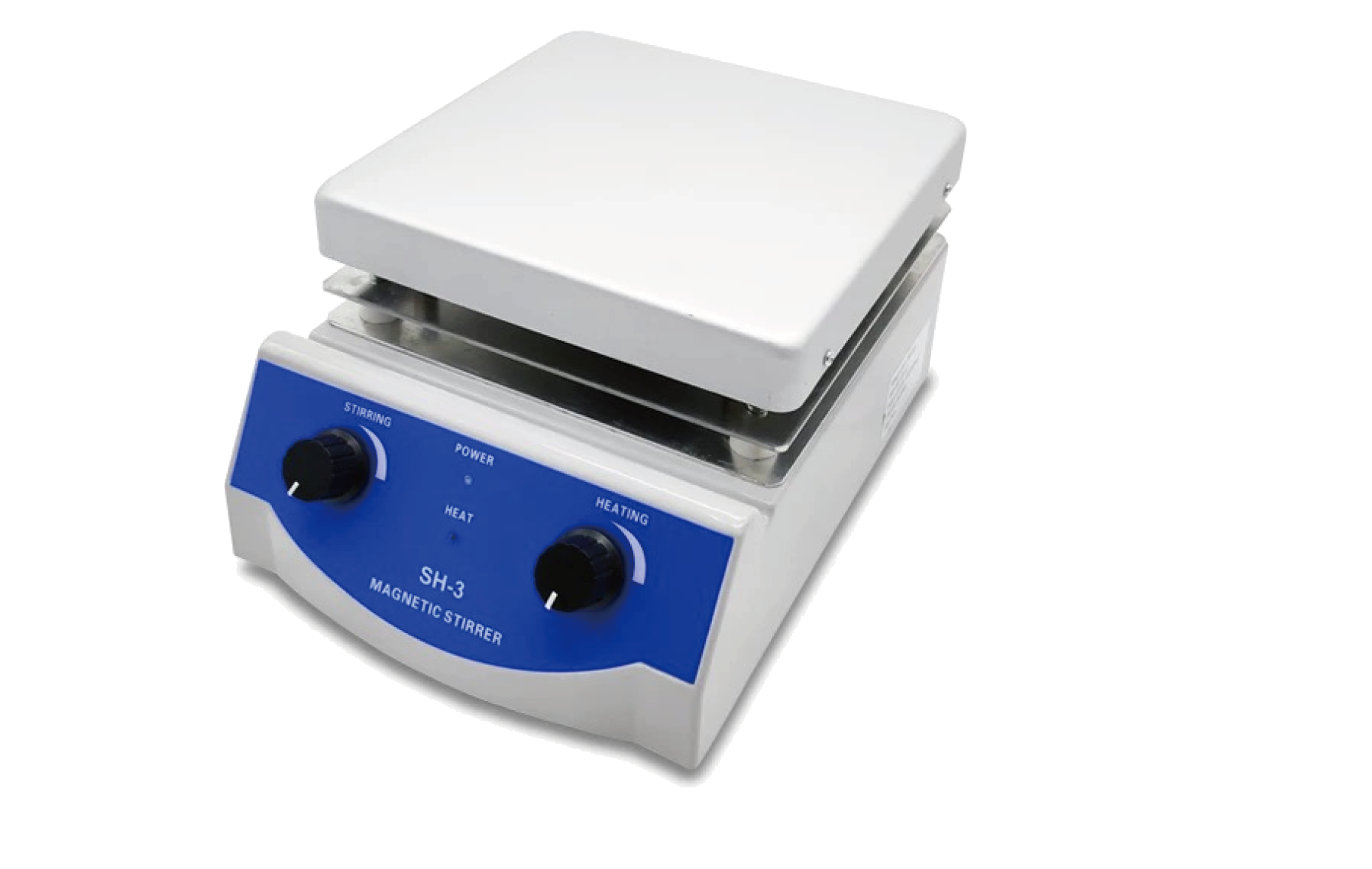

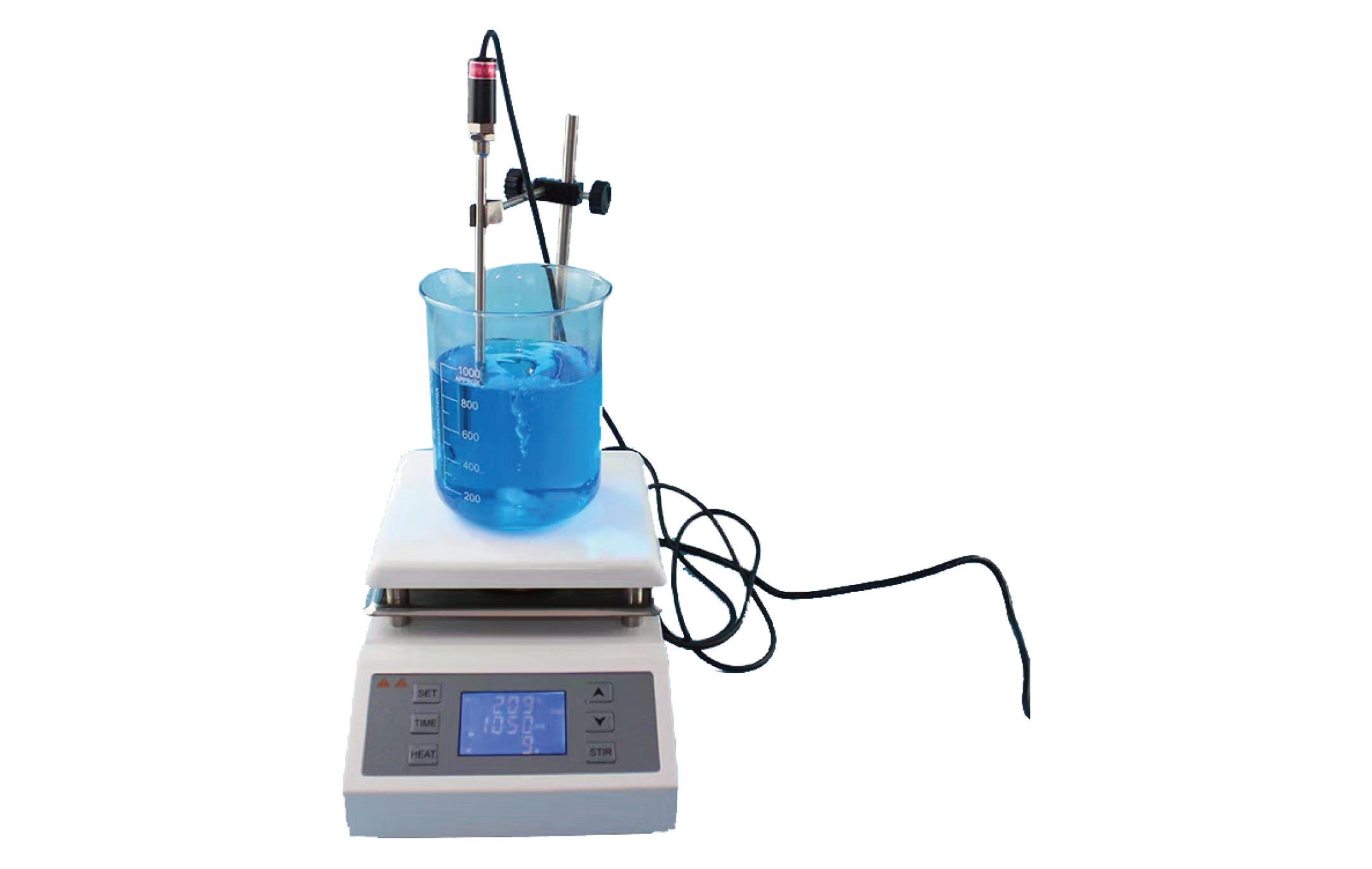

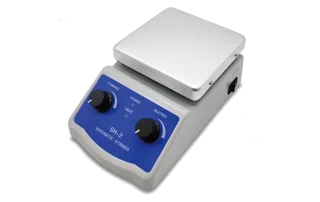

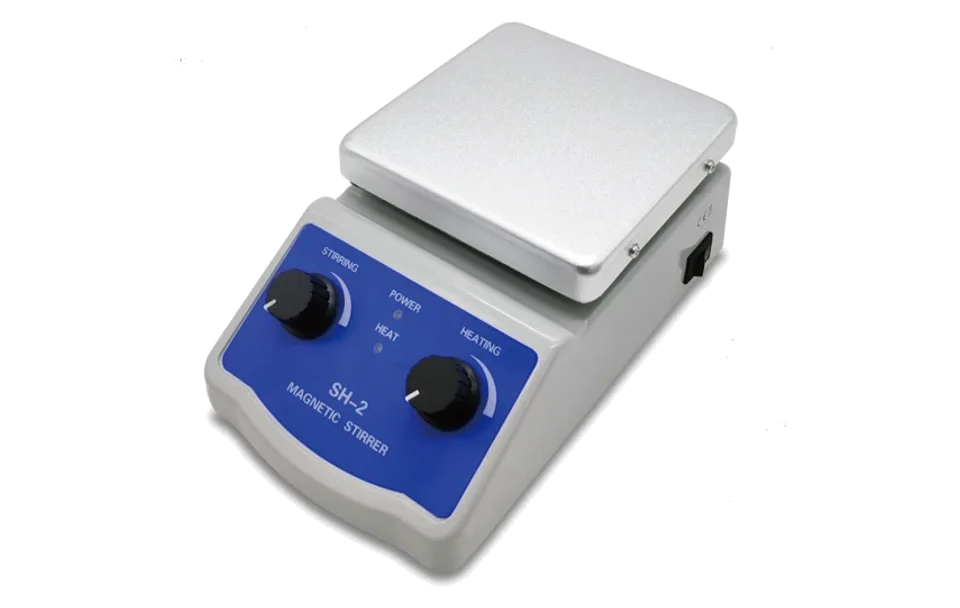

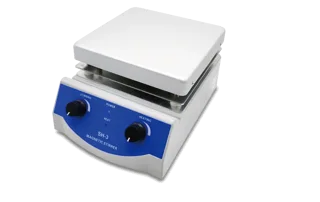

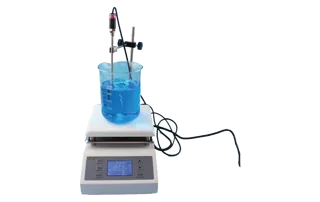

Heating Magnetic Stirrer
Versatile magnetic stirrer with heating, available in several lab-ready models for precise mixing and temperature control.
Configure enquiry
Select model
Model: SH-2
Parameter comparison
Model parameter comparison
Compare SH-2, SH-3, SH-4, and SH-4C.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
SH-2
KYG0463-SH-2
| Digital Temperature Control | 无 |
|---|---|
| Heating Power | 180W |
| Maximum Mixing Capacity | 1L |
| Speed Range | 0–1600rpm |
| Platform Size | 120*120mm |
| Table Material | 铝制 |
Selected model
SH-3
KYG0463-SH-3
| Digital Temperature Control | 无 |
|---|---|
| Heating Power | 500W |
| Maximum Mixing Capacity | 3L |
| Speed Range | 0–1600rpm |
| Platform Size | 170*170mm |
| Table Material | 铝制 |
Selected model
SH-4
KYG0463-SH-4
| Digital Temperature Control | 无 |
|---|---|
| Heating Power | 600W |
| Maximum Mixing Capacity | 5L |
| Speed Range | 0–1600rpm |
| Platform Size | 190*190mm |
| Table Material | 陶瓷防腐涂层 |
Selected model
SH-4C
KYG0463-SH-4C
| Digital Temperature Control | 温度探头 |
|---|---|
| Heating Power | 600W |
| Maximum Mixing Capacity | 5L |
| Speed Range | 200–2000rpm |
| Platform Size | 190*190mm |
| Table Material | 陶瓷防腐涂层 |
Selected variant
SH-2
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
SH-2
Compare variant
SH-3
Heating Power
DifferentSelected variant
Compare variant
Maximum Mixing Capacity
DifferentSelected variant
Compare variant
Speed Range
DifferentSelected variant
Compare variant
Platform Size
DifferentSelected variant
Compare variant
Table Material
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | ||||
|---|---|---|---|---|
| Digital Temperature Control | 无 | 无 | 无 | 温度探头 |
| Heating Power | 180W | 500W | 600W | 600W |
| Maximum Mixing Capacity | 1L | 3L | 5L | 5L |
| Speed Range | 0–1600rpm | 0–1600rpm | 0–1600rpm | 200–2000rpm |
| Platform Size | 120*120mm | 170*170mm | 190*190mm | 190*190mm |
| Table Material | 铝制 | 铝制 | 陶瓷防腐涂层 | 陶瓷防腐涂层 |
Specifications
| Voltage | 220V 50/60HZ |
|---|
Overview
Highlights
- Multiple models accommodate varying volumes for flexible lab work
- User-friendly dual rotary controls enable precise speed and heat adjustment
- Advanced options provide corrosion-resistant ceramic coating and digital temperature control
Applications
- Chemical analysis
- Biological laboratory heating and stirring
- Educational laboratory experiments
Overview
The Heating Magnetic Stirrer is engineered for laboratories needing reliable mixing and uniform heating. Its multi-model lineup addresses a range of sample volumes from 1L to 5L, making it ideal for tasks that require precise solution preparation at controlled temperatures. Each unit integrates an easy-to-use dual rotary control system, so users quickly adjust both stirring speed and heating level to meet specific process requirements.
Selected models combine advanced features such as ceramic-coated platforms for chemical resistance and the availability of digital temperature probes. This ensures safe, consistent operation, even with sensitive or corrosive samples, supporting a wide variety of research and instructional settings.
Typical uses
- Laboratory reagent mixing
- Sample preparation and heating
- Chemical experiments requiring precise solution temperature control
