Waxing & Mould Making
Wax & Mold-Making Consumables
KYG1437-GREEN
Freeman Green Ferris File-A-Wax Ring Tubes
FREEMAN · Ferris File-A-Wax
Freeman Green Ferris File-A-Wax Ring Tubes offer precision carving wax in round, flat, and solid bars for detailed jewelry patterns and lost wax casting.
Configure enquiry
Select model
Model: T-100
Parameter comparison
Model parameter comparison
Compare T-100, T-150, T-200, and T-250.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
T-100
KYG1437-GREEN-T-100
| Hole Diameter | 5/8" |
|---|---|
| Width | 1" |
| Height | 1-1/8" |
| Diameter | — |
Selected model
T-150
KYG1437-GREEN-T-150
| Hole Diameter | 5/8" |
|---|---|
| Width | 1" |
| Height | 1" |
| Diameter | — |
Selected model
T-200
KYG1437-GREEN-T-200
| Hole Diameter | 5/8" |
|---|---|
| Width | 1-3/16" |
| Height | 1-5/16" |
| Diameter | — |
Selected model
T-250
KYG1437-GREEN-T-250
| Hole Diameter | 5/8" |
|---|---|
| Width | 1-1/8" |
| Height | 1-1/8" |
| Diameter | — |
Selected model
T-875
KYG1437-GREEN-T-875
| Hole Diameter | 5/8" |
|---|---|
| Width | — |
| Height | — |
| Diameter | 7/8" |
Selected model
T-1062
KYG1437-GREEN-T-1062
| Hole Diameter | 5/8" |
|---|---|
| Width | — |
| Height | — |
| Diameter | 1-1/16" |
Selected model
T-1062E
KYG1437-GREEN-T-1062E
| Hole Diameter | 5/8" |
|---|---|
| Width | — |
| Height | — |
| Diameter | 1-1/16" |
Selected model
B-875
KYG1437-GREEN-B-875
| Hole Diameter | — |
|---|---|
| Width | — |
| Height | — |
| Diameter | 7/8" |
Selected model
B-1062
KYG1437-GREEN-B-1062
| Hole Diameter | — |
|---|---|
| Width | — |
| Height | — |
| Diameter | 1-1/16" |
Selected variant
T-100
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
T-100
Compare variant
T-150
Width
DifferentSelected variant
Compare variant
Height
DifferentSelected variant
Compare variant
Diameter
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Hole Diameter | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | — | — |
| Width | 1" | 1" | 1-3/16" | 1-1/8" | — | — | — | — | — |
| Height | 1-1/8" | 1" | 1-5/16" | 1-1/8" | — | — | — | — | — |
| Diameter | — | — | — | — | 7/8" | 1-1/16" | 1-1/16" | 7/8" | 1-1/16" |
Specifications
| Length | 6 in (152.4 mm) |
|---|---|
| Color | Green |
| Formulation | File-A-Wax Green |
| Hardness (Shore D) | 57 |
| Hand Carvability | Fair |
| Flexibility | Fair |
| High-Speed CNC | Good |
| Style | Model | Diameter | Width | Height | Hole Diameter |
|---|---|---|---|---|---|
T-100 | - | 1" | 1-1/8" | 5/8" | |
T-150 | - | 1" | 1" | 5/8" | |
T-200 | - | 1-3/16" | 1-5/16" | 5/8" | |
T-250 | - | 1-1/8" | 1-1/8" | 5/8" | |
T-875 | 7/8" | - | - | 5/8" | |
T-1062 | 1-1/16" | - | - | 5/8" | |
T-1062E | 1-1/16" | - | - | 5/8" | |
B-875 | 7/8" | - | - | - | |
B-1062 | 1-1/16" | - | - | - |
Overview
Highlights
- Consistent green formulation for precision hand and CNC carving.
- Available in multiple tube shapes and sizes for versatile jewelry applications.
- Easy to cut, high hardness (Shore D 57) for stable detail retention.
Applications
- Lost wax casting of custom ring designs.
- Prototyping and model making for fine jewelry.
- Hand or CNC carving of wax patterns for casting.
Overview

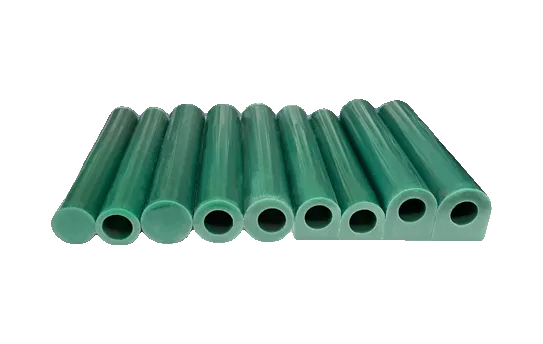

Freeman Green Ferris File-A-Wax Ring Tubes are individually packaged carving wax tubes available in various shapes, including solid bars, round tubes, and flat-sided tubes. Designed for high-precision work, these green wax tubes are ideal for hand carving and CNC machining, offering consistent hardness and reliable performance for jewelry prototype creation.
Each tube is 6 inches (152. 4 mm) long and can be easily cut to desired lengths. The green formulation offers a Shore D hardness of 57, allowing for a balance between hand carver-friendliness and suitability for CNC milling. Multiple style and size options ensure the right fit for a range of ring designs and custom jewelry applications.
